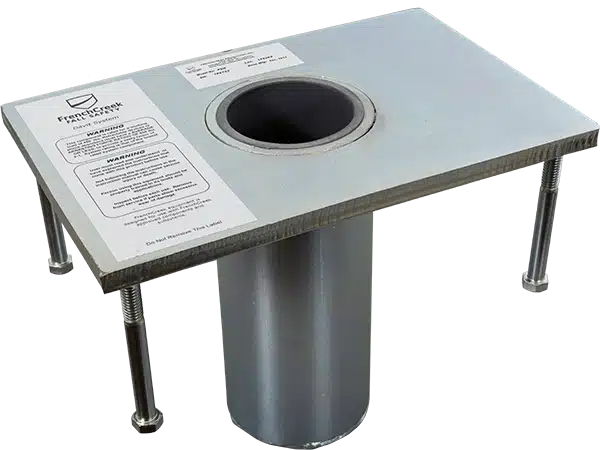

PD6 Floor Mount Cast in Place Davit Base

Made in the USA

FrenchCreek’s portable davit system is used to raise, lower, and suspend personnel in confined spaces performing routine work duties or to facilitate rescues in vertical confined space applications such as vaults, manholes, and pump stations.

  • Floor mount cast-in-place
  • Cast-in design for new concrete construction installation
  • Rugged 8″X12″ plate with 4″ support rods to provide long-lasting fixed base
  • Flush floor profile perfect for high-traffic areas, reducing tripping hazards
  • 9″ deep sleeve with PVC insert
  • 360° mast rotation

PD6 Floor Mount Cast in Place Davit Base

FrenchCreek’s portable davit system is used to raise, lower, and suspend personnel in confined spaces performing routine work duties or to facilitate rescues in vertical confined space applications such as vaults, manholes, and pump stations.

  • Floor mount cast-in-place
  • Cast-in design for new concrete construction installation
  • Rugged 8″X12″ plate with 4″ support rods to provide long-lasting fixed base
  • Flush floor profile perfect for high-traffic areas, reducing tripping hazards
  • 9″ deep sleeve with PVC insert
  • 360° mast rotation

Overview

FrenchCreek's PD6 cast-in place davit system base designed for new concrete construction. Compatible with PD1 davit mast assembly

FEATURES

  • David System Base flush floor profile
  • Quick Ship Item Quick-Ship Available
  • Compatible With PD1 Davit Mast Assembly
  • Installation Floor mount cast-in-place

SPECIFICATIONS

  • Size 8"X12" plate with 4" support rods, 9" deep sleeve insert
  • Weight Capacity 450 lbs. (205kg) at minimum 2:1 safety factor
  • Item Weight 22.25 Lbs.
  • Material Zinc plated carbon steel, PVC insert
  • Standards 1926.502 & 1910.66 when used in complete system
